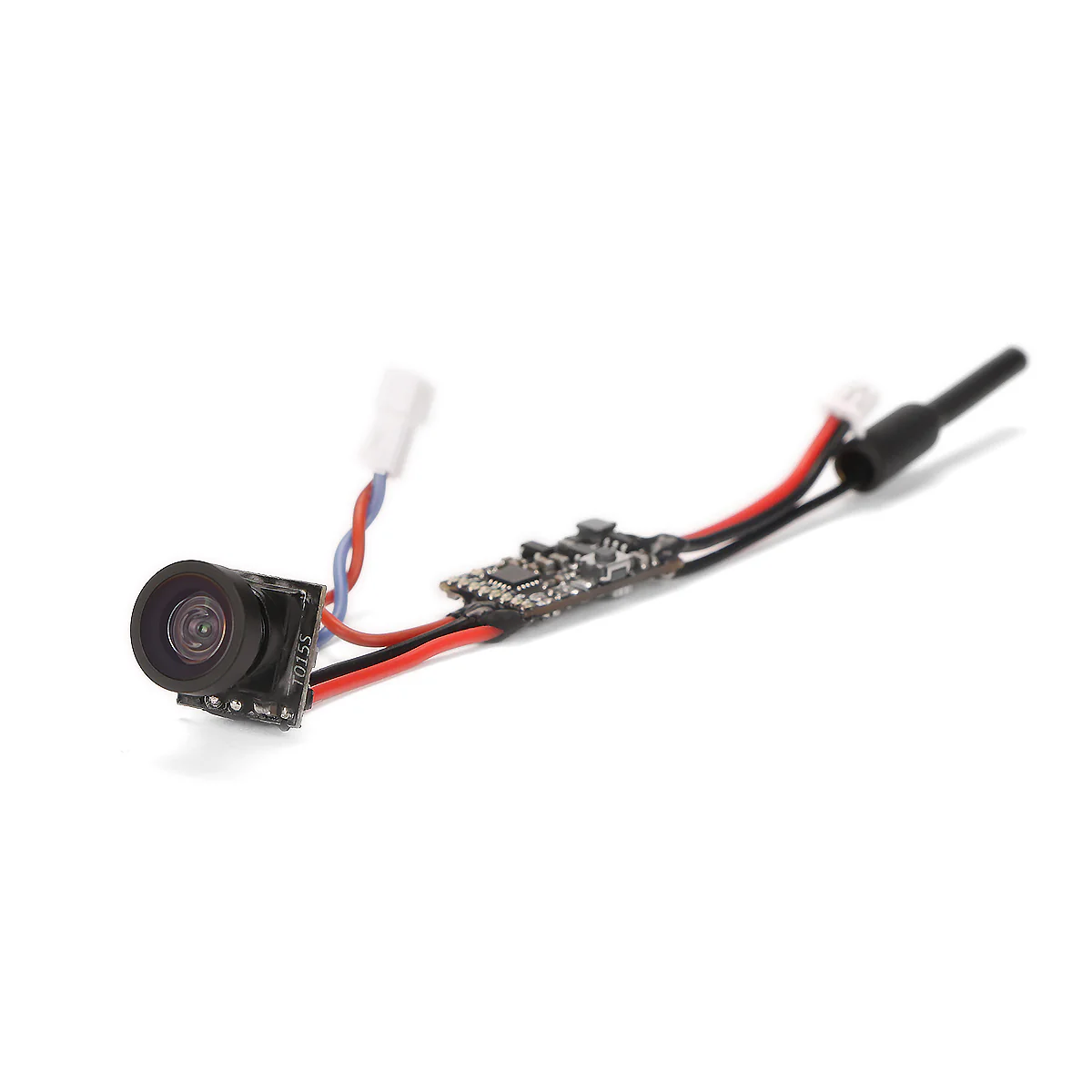

T01 AIO Camera 25mW 5.8G

T01 AIO Camera 25mW 5.8G is a new AIO camera released by BETAFPV. Great alternative to H01 & H02 camera.

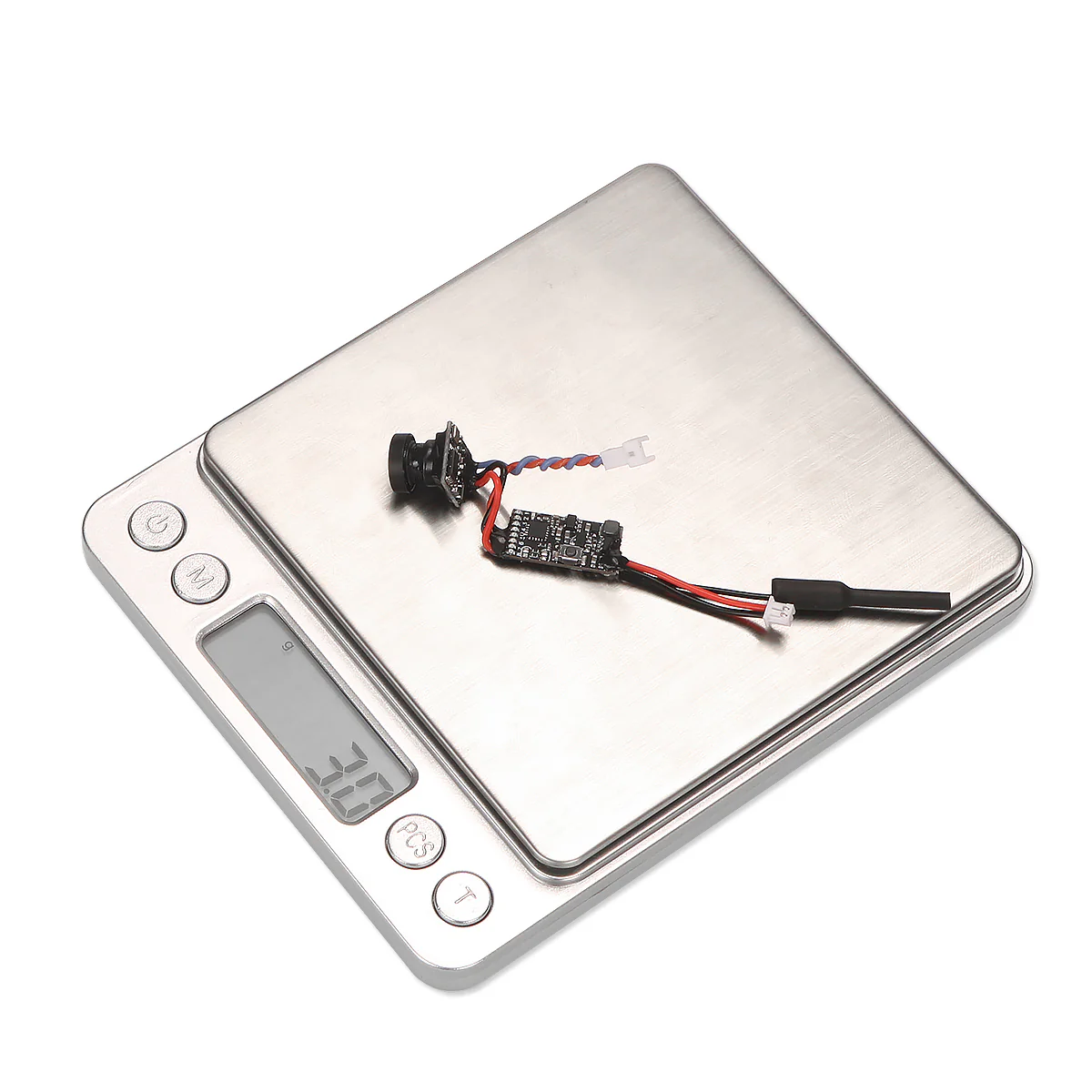

• T01 AIO Camera 25mW 5.8G weighs only 3.0g. It's the lightest AIO camera of all of the BETAFPV's camera.
• Comes with 25° camera mount: perfect for indoor whooping
• 150° perspective: Wide angle for better flying experience

SPECIFICATION

• Output power: 25mW
• Supply Voltage: 2.5-5.5v
• Size : 32 * 10 * 11 mm
• Weight: 3.3g
• Antenna: Monopole Whip Antenna
• Power consumption: 220~400mA@ 3.0-5.0V
• Frequency: 5.8GHz 5 bands 40 channels
• Field of view: 150º
• TVL: 700TVL
• Operating Temperature: -10℃~+60℃
• Channel SEL:Touch Switch
• Channel Indicate:CH1~CH8 Channel indication with 8LEDS and A~F frequency, group Indicate with 5LEDS
• Modulation type：FM
• Transmit power: 13±1dBm
• Frequency control: PLL
• All harmonic: Max -50dBm
• Frequency Stability: ±100KHz (Typ.)
• Frequency precision: ±200KHz (Typ.)
• Channel Carrier error: 1dB
• Antenna Port: 50 Ω
• SENSOR:PAL: 720X540/NTSC:640X480 1/4”
• Base-band interface: (P1.27*2)
• Profile dimension: 14.5mm*12.2mm+14.5mm*12mm



HOW TO CONNECT THE CAM TO THE FC

PACKAGE

• 1 * T01 AIO Camera
• 1 * 25° Camera Mount
